DM.MOVABLE FANS

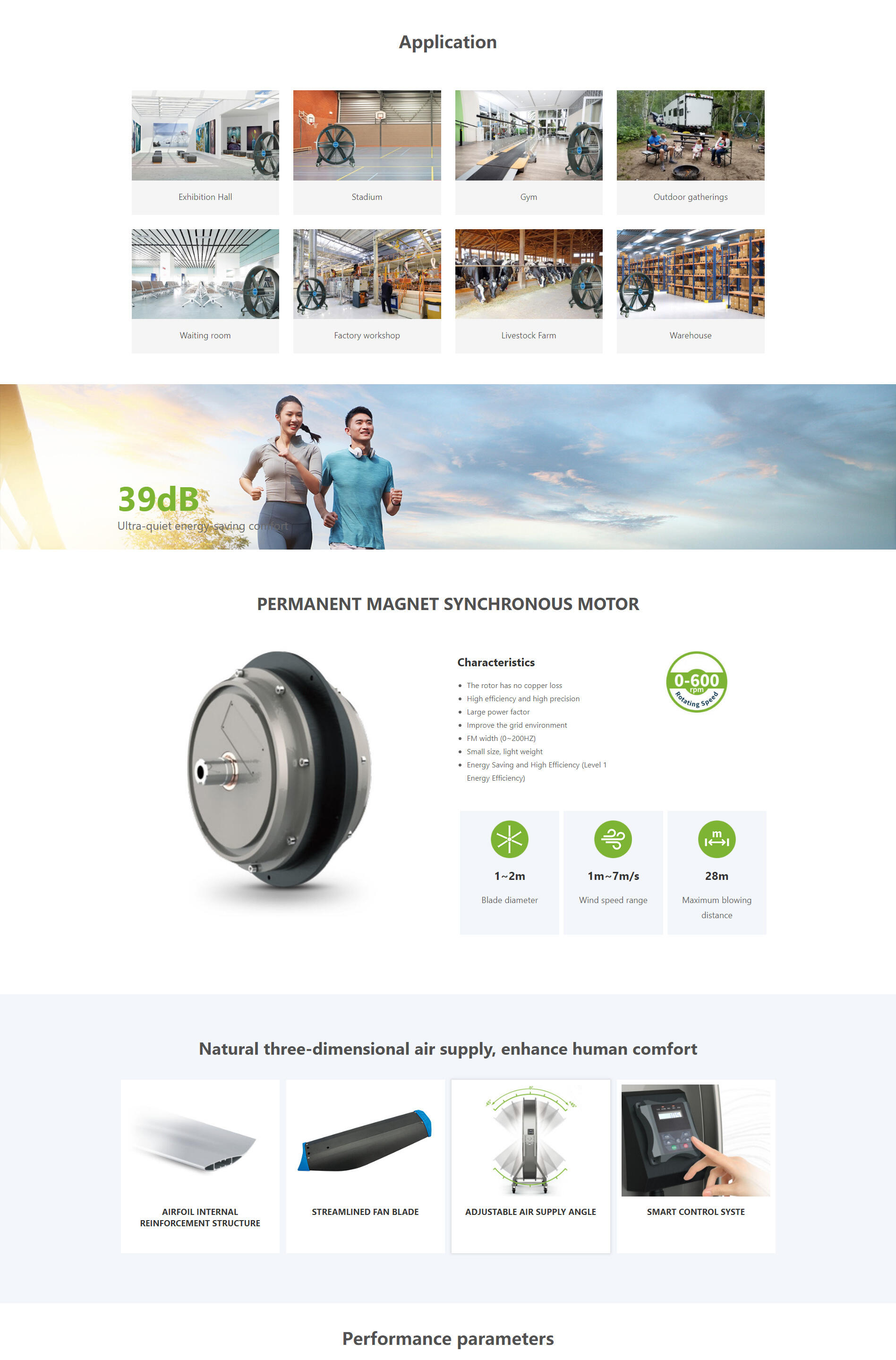

DM series PM VFD movable fan is a new product specifically developed for improving the comfort of the working environment. It features self-designed variable frequency speed control, high efficiency, and energy-saving permanent magnet external rotor motor drive. It has the advantages of low noise, small volume, lightweight, compact structure, and beautiful appearance.
| Series | DM.Fans Series | ||||||||
| Model | DM48-5 | DM48 | DM59 | DM79 | |||||
| Specification/Diameter (m) | 1.2 | 1.25 | 1.5 | 2.0 | |||||
| Power parameters (V) | 220V/50Hz | ||||||||
| Rated power (kw) | 0.55 | 0.6 | 0.75 | 1.0 | |||||
| Full load air volume (m ³/min) | 500 | 630 | 920 | 1330 | |||||
| Speed (rpm) | 600 | 440 | 420 | 300 | |||||
| Air supply distance (m) | ≥25m | ||||||||
| Total weight(kg) | 45 | 60 | 93 | 122 | |||||
| Applicable area(m³) | 300-600 | ||||||||
| Dimension(mm) | 1420*560*1390 | 1510*790*1680 | 1720*560*1690 | 2220*730*2190 | |||||
